NanoMount One-Sheet
SOLAR’S FASTEST ATTACHMENT
Damaging roof shingles used to be one of a solar installers’ worst challenges. Now, the easy, affordable solution is NanoMount®, SunModo’s newest solar mounting innovation. The mount eliminates the need to lift shingles and dramatically reduces the installation time.

The NanoMount Advantage

    The fastest roof attachment in solar
    5 levels of protection against water penetration
    Eliminates the need to lift shingles and prevents damage to shingle
    Versatile mounting options including direct-to-decking
    High-Velocity Hurricane Zone Approved – Passed TAS 100 (a) Wind-Driven Rain Test
    All materials are compatible with asphalt shingles and single-ply roof membranes

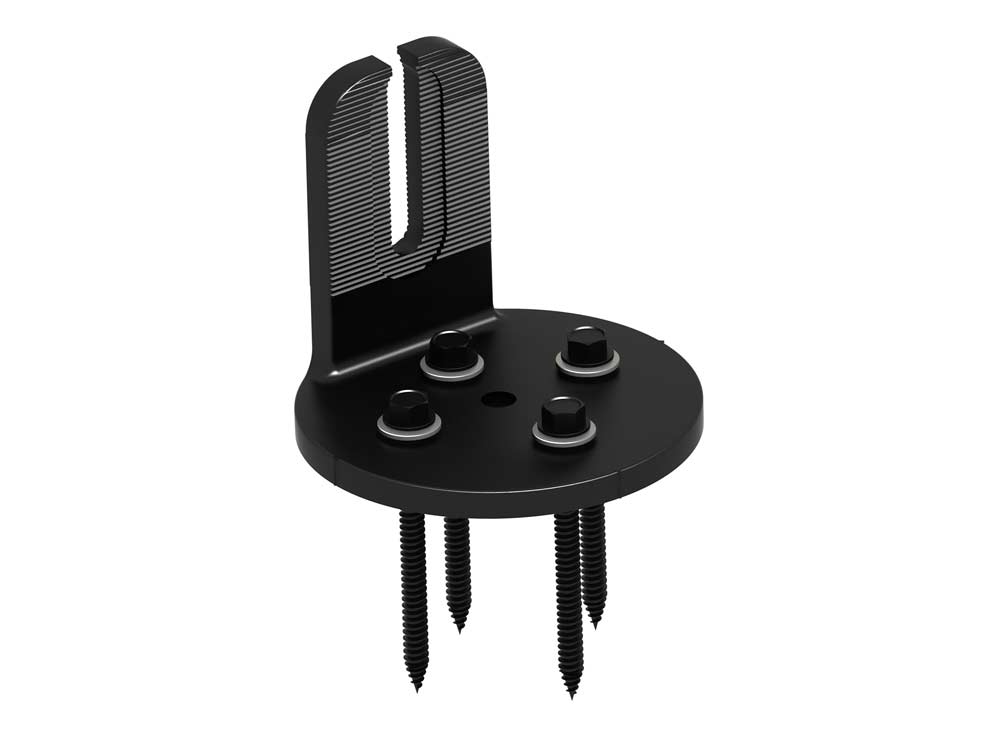

      KEY FEATURES
        Aesthetically pleasing unibody aluminum cast construction
        360-degree positioning, serrated surface on both sides for rail mounting
        Alignment markers enable easy installation
        Open L-Foot for fast rail attachment
        4 Deck Screws for Deck Mount or 1 Lag Bolt for Rafter Mount
        Integrated Ultra Soft Weather Resistant gasket
        TECHNICAL DATA
        Application: Residential roof coverings, commercial single-ply roof membranes
        Material: High-grade aluminum, 304 stainless steel hardware
        Finish: Black powder coating
        Roof Attachment: Rafter and decking
        Structural integrity: IBC and IRC Compliant
        Warranty: 25 years
